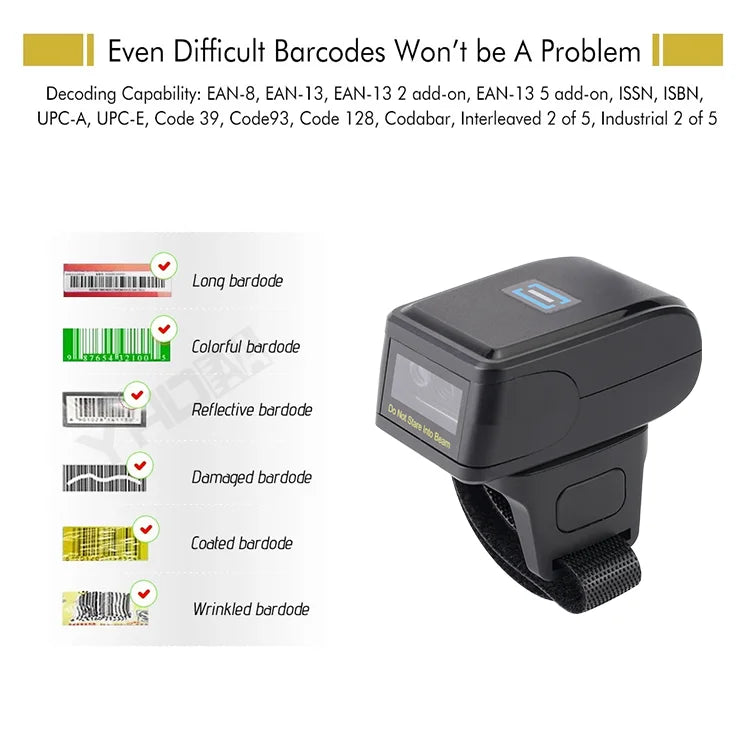

YHDAA Mini Portable Wearable Barcode Reader
YHDAA Mini Portable Wearable Barcode Reader
SPECIFICATIONS
Application: Supermarket/Retail Shop/Logistic
Battery: 800mA Li-ion battery
Function: ring barcode scanner
Interface type: Bluetooth/wireless/wired
Keywords: 2d cmos barcode reader
Name: high speed barcode scanner
Product Name: ring barcode scanner
Sensor: 800*600 CMOS
Style: portable mini barcode scanner
Trigger Mode: Button,Continuous,Auto-Induction
after-sales service: Return and Replacement,Others,Repair,Free Spare Parts,Onsite Training and Inspection,Call Center and on-line Technical Support
brand name: YHDAA
color: Black
colour depth: 32 Bit
interface type: USB,bluetooth/wireless
optical resolution: 4mil
place of origin: Guangdong, China
private mold: Yes
products status: Stock
scan element type: CMOS
scan speed: 500 scans/second
software development kit (sdk): Yes
type: Barcode Scanner
warranty(year): 2-Year
|

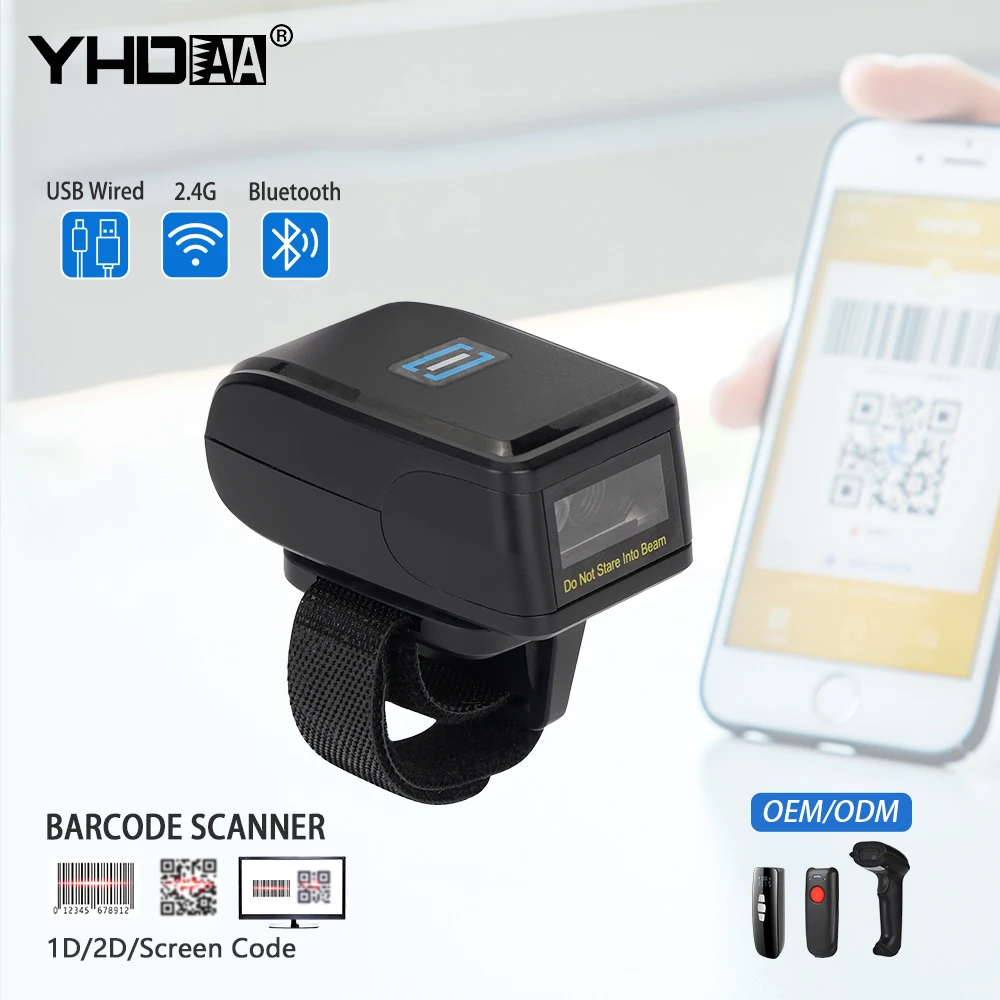

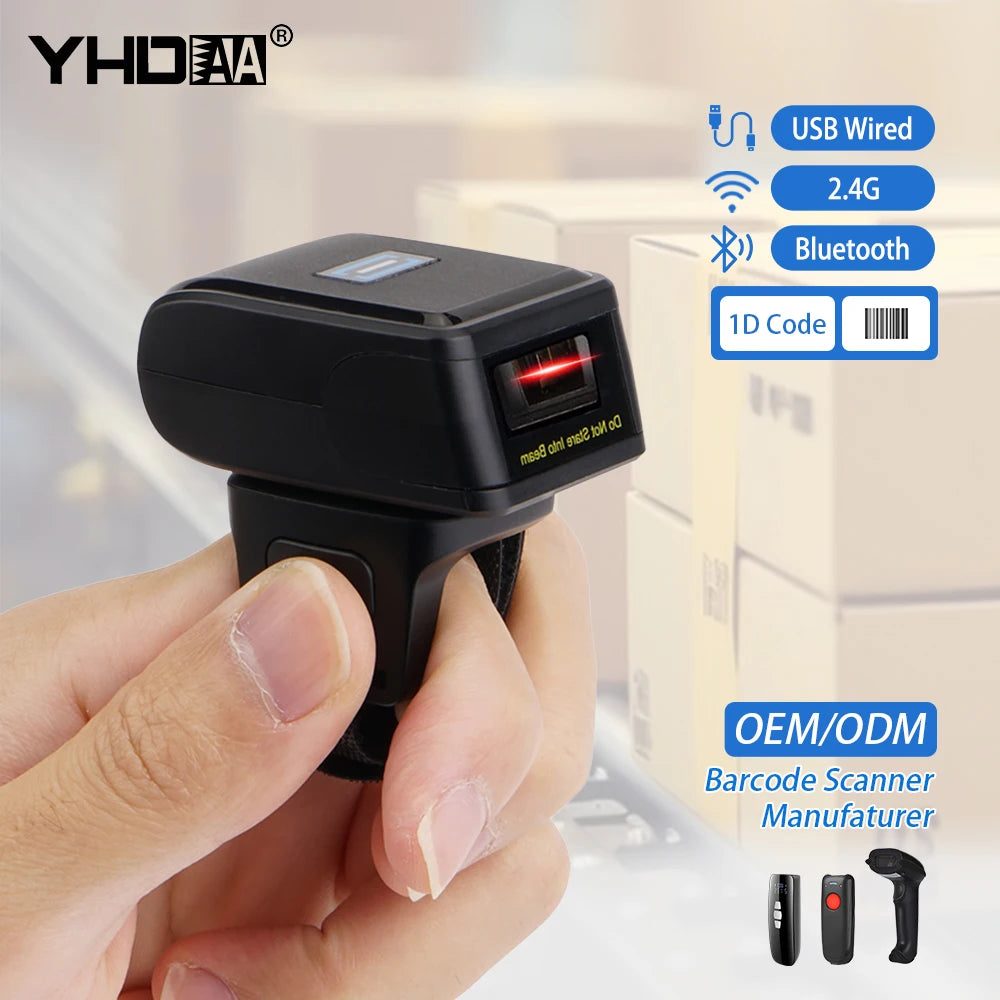

Model: YHD-3300DB 2D Wireless Bluetooth Portable Ring Barcode Scanner
|
|
|
|
|
||||
|
Transmission mode
|
Bluetooth/2.4G/Wired
|
Storage
|
10,000 barcodes
|
|
||||
|
Distance
|
50m/100m/1.5m
|
Imaging Sensor
|
800*600 CMOS
|
|
||||
|
CPU
|
ARM 32-bit Cortex
|
Size
|
53mm*36mm*45mm
|
|
||||
|
Indication
|
Buzzer & LED
|
Anti-inference
|
0-100000Lux Max
|
|
||||
|
Resolution
|
4mil
|
Illumination
|
6500K LEDs
|
|
||||
|
Decoding speed
|
500scans/sec
|
BER
|
1/5million
|
|
||||
|
Printing Contract
|
25%
|
Material
|
ABS+PC
|
|
||||
|
Scanning angle
|
±360°，± 65°， ± 60°
|
Battery
|
800mAh
|
|
||||
|

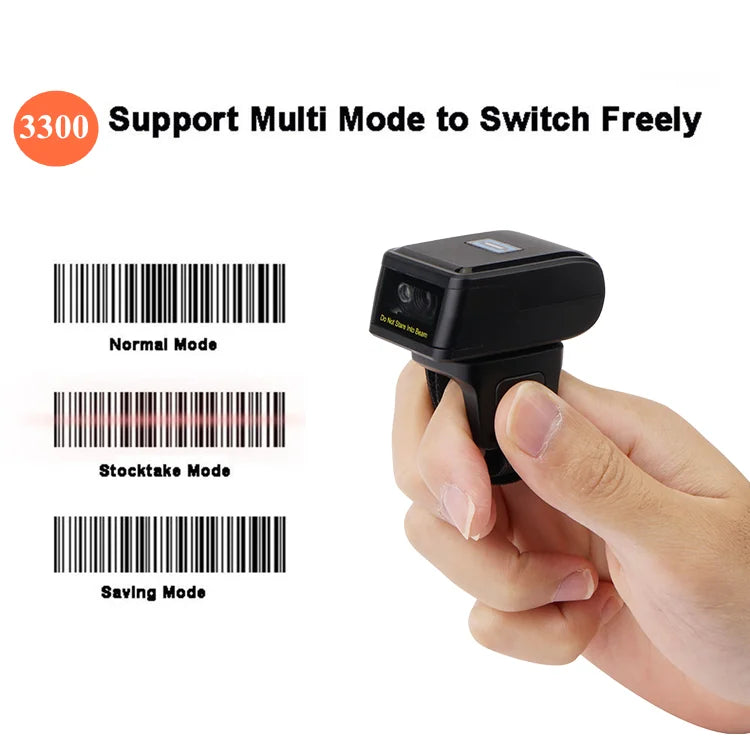

Trigger Mode
|
Handheld,Continuous,Auto-Induction
|
LED life
|
100000 hours
|
|
||||
|
Temperature
|
Working : -20℃-50℃
|
Temperature
|
Storage: -40℃-60℃
|
|
||||
|
Working time
|
3 to 7 days
|
Standby time
|
>30 days
|
|
||||
|
Button life
|
8000,000 times
|
Relative humidity
|
5%-95%
|
|
||||
|
Charging time
|
3-5 hours
|
Drop test
|
2m
|
|
||||
|
Decode Capability
|
1D Code：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5,Coda bar，MSI Plessey，RSS，etc.
2D Code: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
|

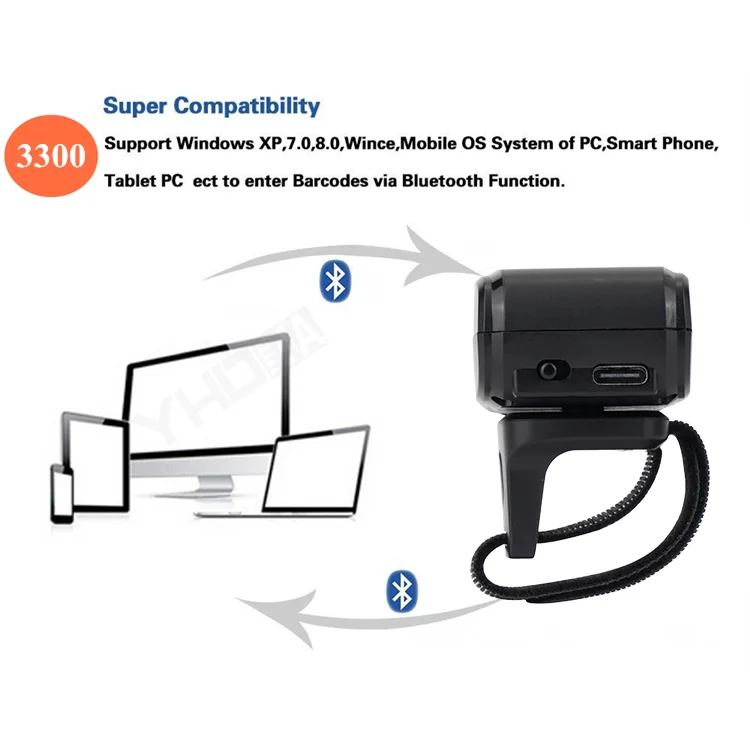

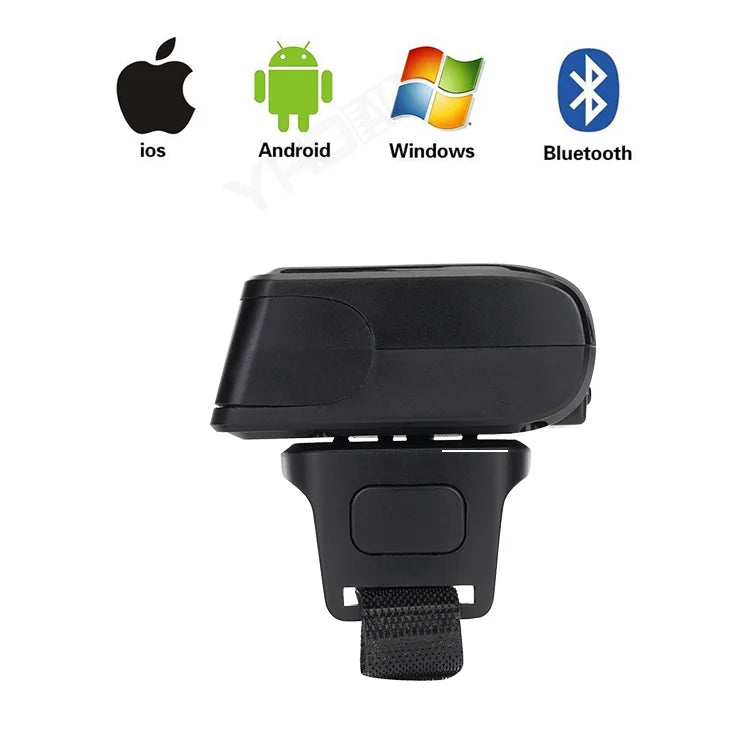

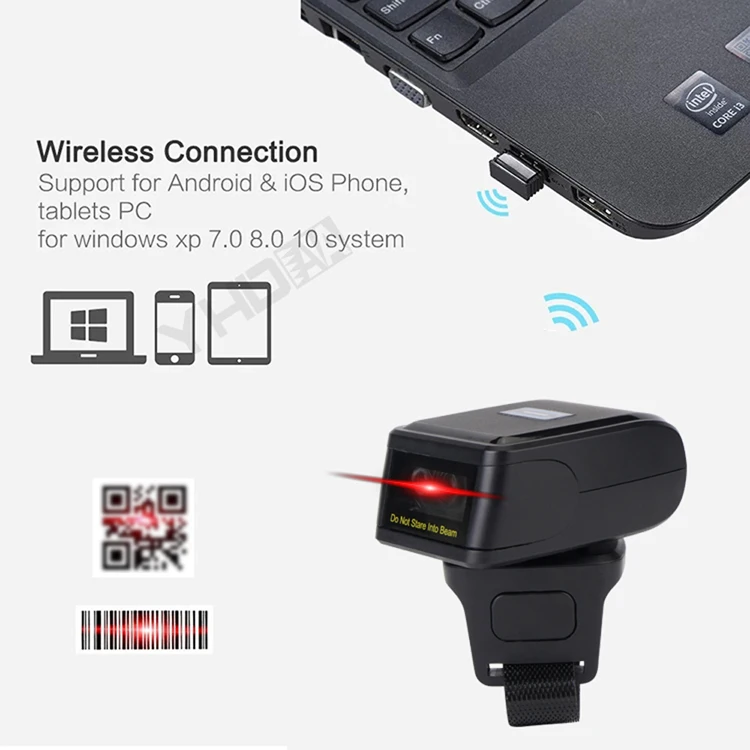

Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS, Linux.
|
YHDAA CMOS Bluetooth Barcode Scanner for iPhone iPad Android Tablet PC,
Support HID / SPP / BLE mode
|
|
||||
